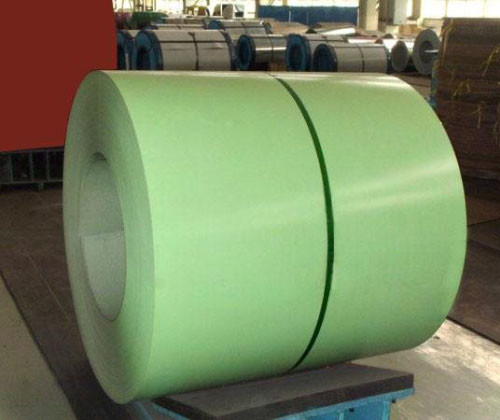

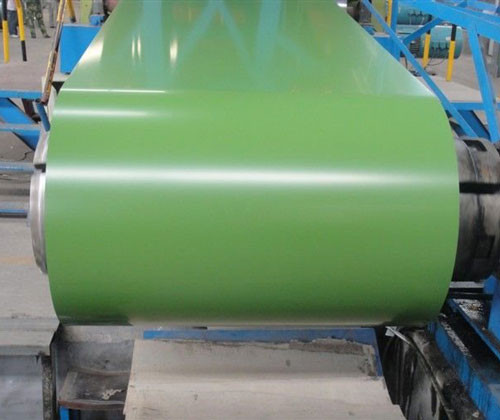

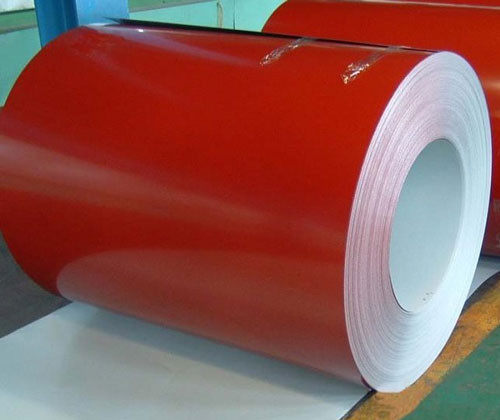

Pre-painted galvalum steel coil/sheet or PPGL is based on galvalume steel coils/sheet and features: excellent aesthetic appeal,formability, corrosion resistance, strong adhesion and longer service time.
|
Thickness |
0.14mm-0.7mm |
|
Width |
750mm-1250mm |
|
Surface |
AZ40-150g/m2 |
|
Top painting |
15~25u PE, Ral Chart or as per customer’s color |
|
Back painting |
5~7u epoxy coating, standard grey white color |
|
Inner Diameter |
508/610mm |
|
Coil weight |
3.0-6.0MT |
|
Grade |
SGLCC, DX51D+AZ, CS B/C and etc. |
|
Standard |
JIS G 3321, EN 10215, ASTM A792M-02, etc. |
|

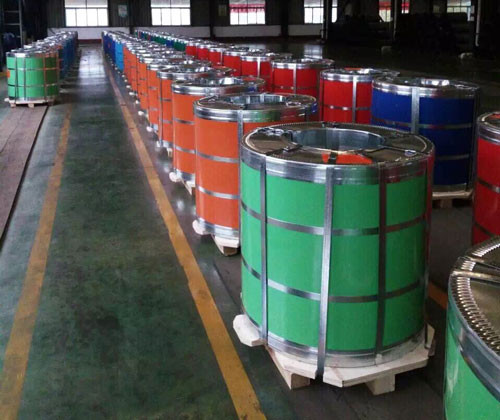

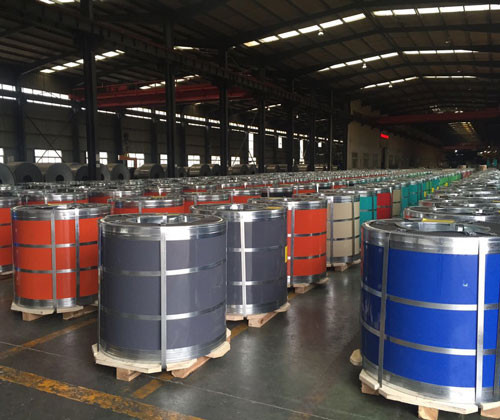

Packing |
Wrapped by plastic film and waterproof paper, and then fully packed by galvanized steel sheet. |
Application:
(1). Buildings&Constructions
workshop, agriculture warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, door, door case, light steel roof structure, folding screen,ceiling, elevator, stairway,
(2). Transportation
A. inside decoration of auto and train, clapboard, container
(3). Electrical application
washing machine, switch cabinet, instrument cabinet, air conditioning, micro-wave oven,
